Multifunction Power Tool BZ-60UNV with battery for 16-300mm² Cu and Al cable

Model:BZ-60UNV

Brand: iGeelee

CONTACT US

Multifunction Power Tool BZ-60UNV with battery for 16-300mm² Cu and Al cable

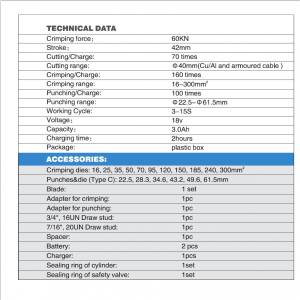

BZ-60UNV technical data



The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.



A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp.



The unit is equipped with a special break when stops the forward motion of the piston & die when the trigger is released.



The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.



The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.



Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of no operation, the tool is always ready to operate.



In addition, we see a lower power-weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.



A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
