Hydraulic Hose Crimper Tool Kit IG-71500 for Barbed and Beaded Hose Fittings


Brand: iGeelee


IG-71500 Hydraulic A/C Hose Crimper Kit/Hydraulic  Hose Crimper Tool

Check  IG-71500 hose crimper tool data below:

71500 – 001Hydra – flare assembly
71500 – 8Die Set – #8 (13/32″)
M71500 – 10Die Set – #10 (1/2″)
M71500 – 12Die Set – #12 (5/8″)
71500 – 6SRBDie Set – #6 (5/16″ Reduced Barrier)
71500 – 8SRBDie Set – #8 Reduced Barrier (13/32)
71500 – 10SRBDie Set – #10 (1/2″ Reduced Barrier)
71500 – 12SRBDie Set – #12 (5/8″ Reduced Barrier)
71500 – PBDie Set Plastic Box


How to Use IG-71500 Hydraulic A/C Hose Crimper Tool?

It is Easy for Using

1. Remove pin and lose the handle till you can “Open” top yoke.

2. Select correct die set (refer to the back page for description )

3. Insert the die into the joke.

4. Position fitting and hose in the crimper and close the yoke.

5. Insert pin securely.

6. Turn Body of tool clockwise until dies are snug against hose fitting.

7. Turn the hydraulic valve to “closed “position.

8. Pump handle to crimp fitting onto hose continues pumping until handle comes to a stop.

9. Once crimp is complete, turn the hydraulic valve to OPEN position.

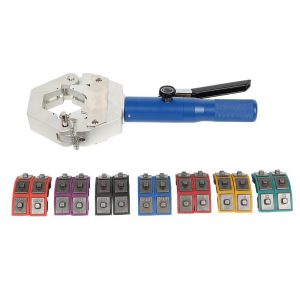

Hydraulic AC Hose Crimper Tool Kit IG-71500 for Barbed and Beaded Hose Fittings (5)

Hydra-Krimp for Barbed and Beaded Hose Fittings

The new Patent pending “HYDRA – KRIMP” makes crimping barbed and beaded fittings as easy as 1 – 2 – 3!

The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.

The Hydra- Krimp can be used on both beaded and barbed hose fittings.

The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12.

The dies snap quickly into the press fixture requiring no pins or screws. The kit comes in a custom molded case and includes

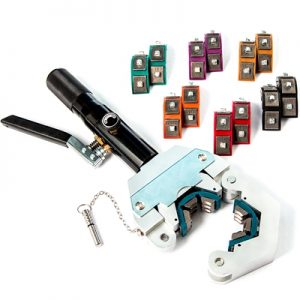

The tool includes four sets of dies for barrier ac hose. The crimping tool has a base that can be mounted to a bench for easy use,or the base can be held by any vise (7)

About iGeelee Hydraulic crimping tools

Hydraulic crimping tools are a specialty, professional pliers designed for crimping of copper, aluminum, various metals, as well as types of cable wiring and butt connectors. Crimping pliers will crush metal objects to create what is called a crimp, which describes a tight join or closure that will not open back up on its own. We aim to show you accurate product information.
